Product Description

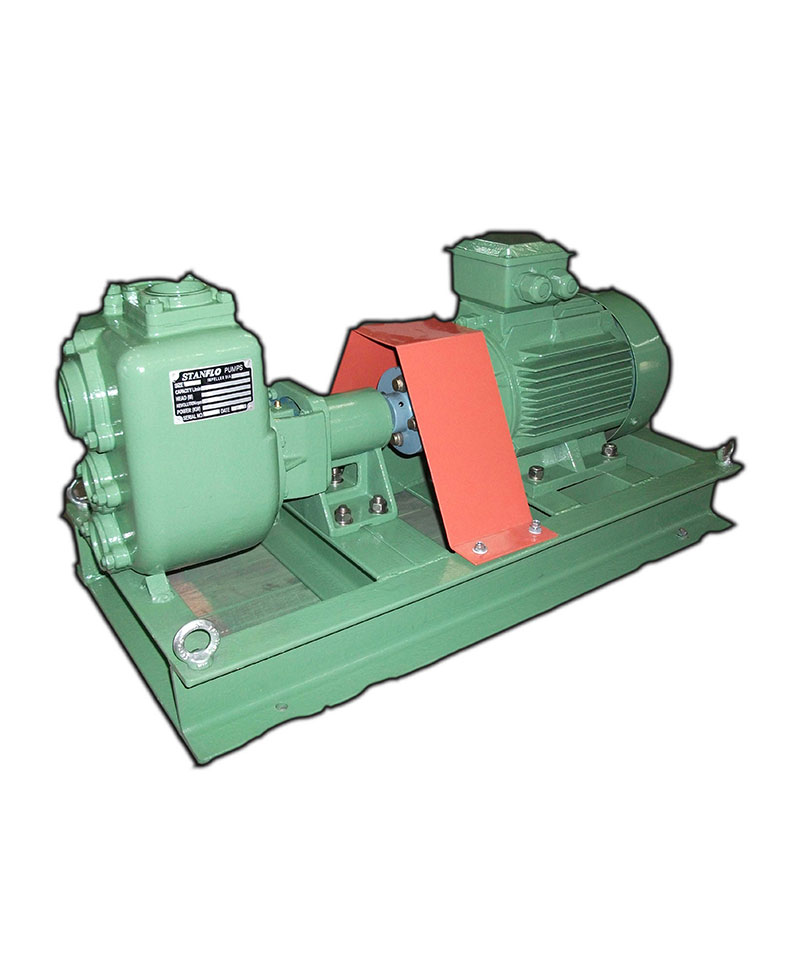

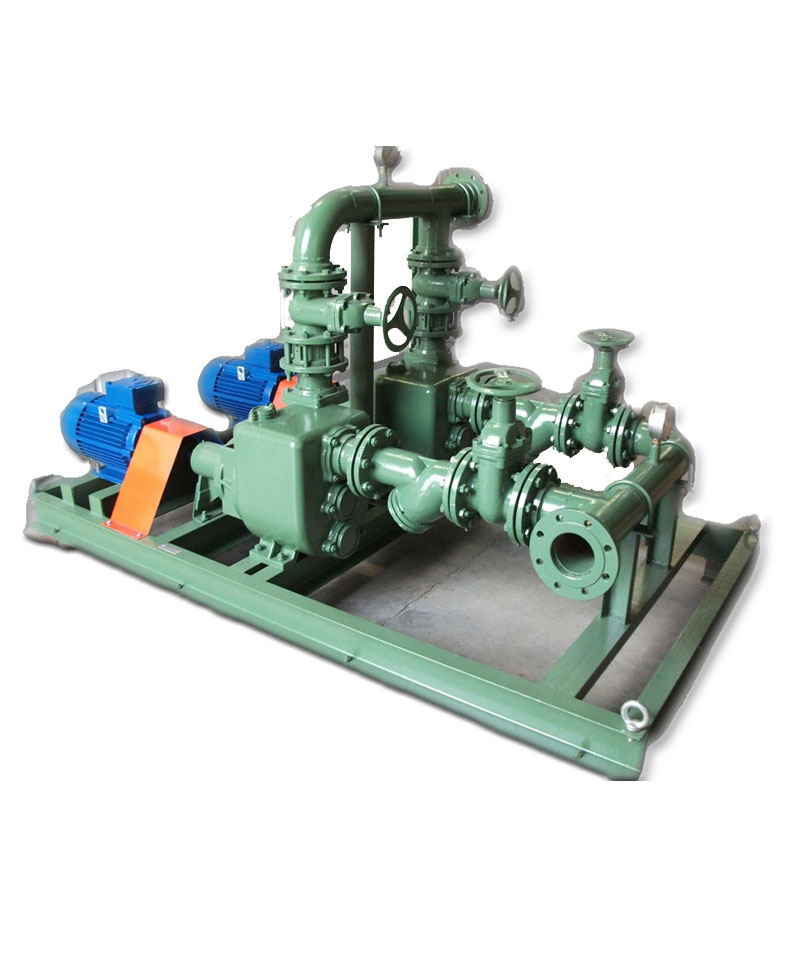

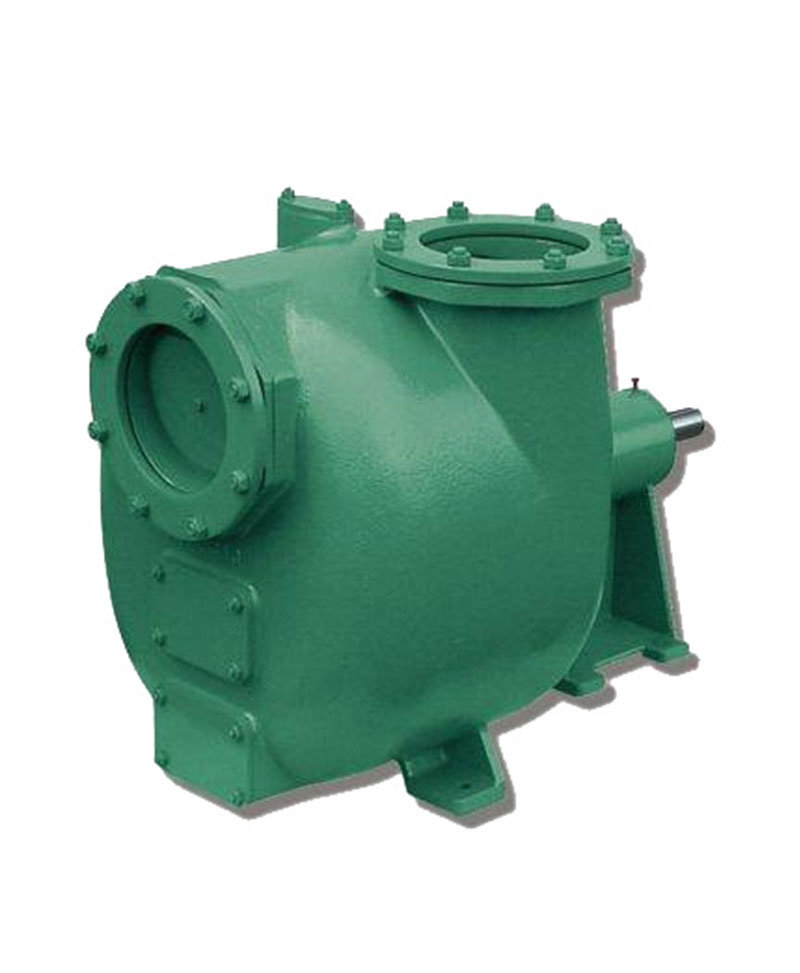

S Series Self Priming Pumps
S Series Self Priming Pumps provide dependable transfer of clean, dirty and solids-laden liquids for industrial, construction, agricultural and wastewater applications across India. Stanflo builds the range as horizontal, single-stage centrifugal pumps with open impellers.
Moreover, selected models can pass solids up to 76 mm. Therefore, the S Series can handle liquids that may clog conventional centrifugal water pumps.
Reliable Self-Priming Performance
S Series Self Priming Pumps remove air from the suction line and establish liquid flow automatically after initial filling. As a result, users can install the pump above or beside the liquid source.
In addition, suitable Stanflo S Series models can prime and re-prime from depths beyond 7.5 metres without a foot valve.
However, operators must fill the pump casing before the first start and maintain an airtight suction line. Air leakage can increase priming time and reduce hydraulic performance.
Key Features and Benefits
The S Series provides:
- Horizontal single-stage centrifugal design
- Self-priming operation
- Open solids-handling impeller
- Solids passage up to 76 mm
- Replaceable wear plates
- Large removable inspection cover
- Externally lubricated mechanical seal
- Hard mechanical-seal faces
- Cast-iron construction options
- Stainless-steel-fitted configurations
- All-stainless-steel options
- Motor ratings from 1.1 to 55 kW
- Connection sizes from 1½ to 12 inches
- Selected capacities up to approximately 1,200 m³/h
Together, these features support demanding dirty-water, wastewater and dewatering duties.
Open Impeller for Solids Handling
The open impeller allows wastewater, debris and suspended solids to move through the hydraulic section.
Consequently, S Series Self Priming Pumps suit dirty-water transfer, construction dewatering and selected sewage-handling applications.
Published models provide solids passage from approximately 15 to 76 mm. Therefore, engineers should confirm the allowable particle size for the exact model before installation.
Replaceable Wear Plates
Abrasive particles gradually wear internal hydraulic surfaces. For this reason, Stanflo incorporates replaceable wear plates to protect the main pump structure.
Technicians can restore operating clearances by replacing worn components rather than the complete casing. As a result, this design can simplify maintenance and reduce lifecycle costs.
Easy Impeller Access
A large removable inspection cover provides direct access to the impeller.
Therefore, maintenance teams can inspect the hydraulic section and remove compatible blockages without disconnecting the main suction or discharge pipework.
Furthermore, this arrangement can reduce maintenance time in demanding wastewater and construction applications.
Externally Lubricated Mechanical Seal
The S Series Self Priming Pumps use externally lubricated mechanical seals with hard seal faces.
The lubrication arrangement helps protect the mechanical seal during short periods of temporary dry running. Nevertheless, operators should avoid prolonged dry operation because excessive heat can damage the seal and hydraulic components.
Flexible Construction Options
Stanflo offers cast-iron, stainless-steel-fitted and all-stainless-steel configurations across the S Series.
Consequently, engineers can match pump materials to the pumped liquid and operating environment.
In addition, Buna sealing arrangements can support liquid temperatures up to approximately 105°C, while selected Viton configurations may support temperatures up to 150°C.
However, users should confirm the exact temperature and material limits for the selected model.
S Series Performance Range
Published range-wide data includes:
- Connection sizes: 1½ to 12 inches
- Solids passage: 15 to 76 mm
- Motor ratings: 1.1 to 55 kW
- Selected capacity: Up to approximately 1,200 m³/h
- Priming depth: Beyond 7.5 metres on suitable models
- Construction: Cast iron and stainless-steel options
- Temperature capability: Up to 105°C with Buna
- Selected Viton configurations: Up to 150°C
However, these maximum values do not apply simultaneously to every model. Therefore, engineers should select the final S Series Self Priming Pump from its official performance curve and calculated system head.
S Series Self Priming Pump Applications in India
S Series Self Priming Pumps may support applications across India such as:
- Sewage and wastewater transfer
- Construction-site dewatering
- Civil engineering projects
- Mining water management
- Agricultural drainage
- Irrigation water transfer
- Waste-treatment facilities
- Marine and shipbuilding services
- Industrial dirty-water transfer
- Sediment-bearing water pumping
- Temporary bypass pumping
- General solids-laden liquid transfer
Moreover, their above-ground installation makes them practical where users need convenient pump access and large solids passage.
Selecting the Correct S Series Pump
Correct selection depends on:
- Required flow rate
- Total dynamic head
- Suction lift
- Maximum solids diameter
- Liquid abrasiveness
- Liquid temperature
- Motor power
- Construction material
- Suction-pipe size
- Operating frequency
In addition, the suction line must remain completely airtight for dependable priming.
Therefore, engineers should select S Series Self Priming Pumps from model-specific hydraulic and technical data. Correct sizing can improve performance while reducing wear, cavitation and motor overload.
Product Enquiries in India
The S Series Self Priming Pumps are presented through Pumps Bharat for wastewater, construction dewatering, mining, agriculture, dirty-water transfer and other solids-handling applications across India.
When submitting an enquiry, please provide the required flow, total head, suction depth, solids size, liquid characteristics, temperature and preferred construction material. Consequently, the available Stanflo S Series configurations can be evaluated against the application requirements.
