Product Description

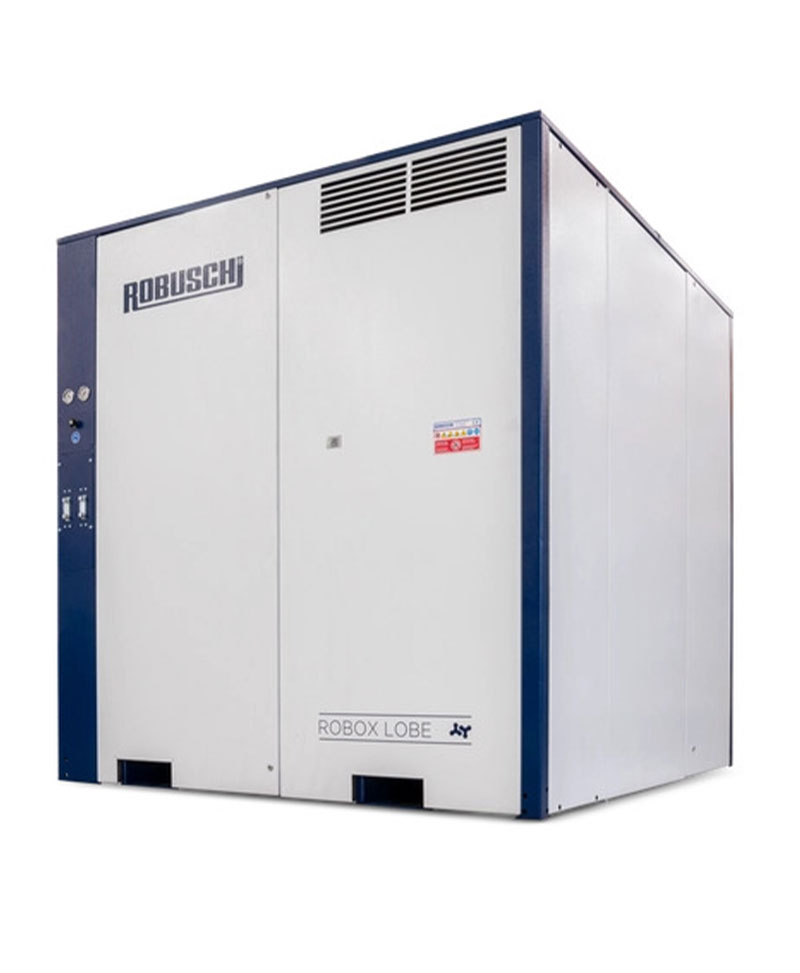

Robox Lobe Blower Unit
The Robox Lobe Blower Unit provides reliable positive-displacement airflow for industrial pressure and vacuum applications across India. Its engineered acoustic enclosure combines the Robuschi RBS tri-lobe airend, drive system, motor, silencers and essential package components in a compact arrangement.
The range delivers pressures up to 1,000 mbar(g), vacuum operation down to 500 mbar(a) and capacities up to 10,500 m³/h. Therefore, it can support both moderate-airflow installations and large industrial processes.

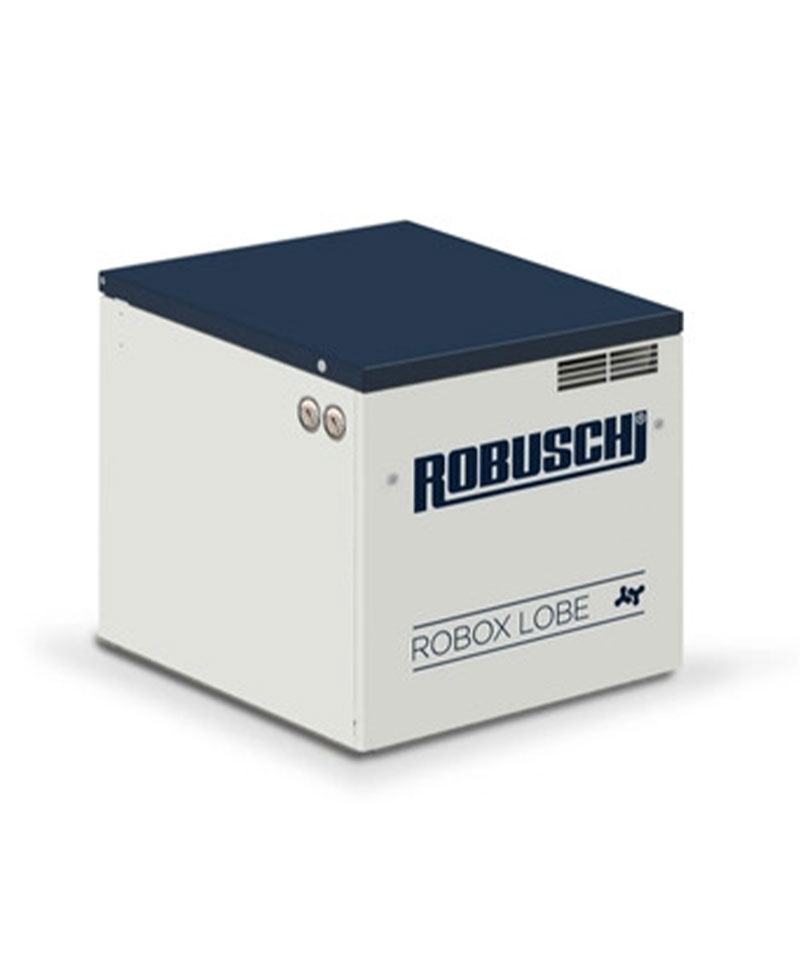

Compact Robox Lobe Blower Design
Robuschi designed the package to minimise installation space while maintaining service access and airflow performance.
The re-engineered Robox Lobe sizes 1.0 and 1.5 reduce package footprint by up to 20%. Consequently, they suit blower rooms, packaged plants and retrofit projects where floor space is limited.
In addition, rigid bases include dedicated forklift channels. Therefore, installers can position each unit on a suitable level surface without requiring specialised foundations.
Key Features and Benefits
The Robox Lobe Blower Unit provides:
- Pressure up to 1,000 mbar(g)
- Vacuum operation down to 500 mbar(a)
- Maximum capacity up to 10,500 m³/h
- Robuschi RBS tri-lobe airend
- Class 0 oil-free air certification
- Low residual pressure pulsation
- Compact acoustic enclosure
- Low noise emissions
- Convenient service access
- Side-by-side installation capability
- Integrated inlet and discharge silencers
- Accessible non-return valve
- Dual splash lubrication system
- Robox Connect 2.0 controller option
- Variable-speed plug-and-play package option
Together, these features support continuous industrial airflow duties across a wide range of applications.

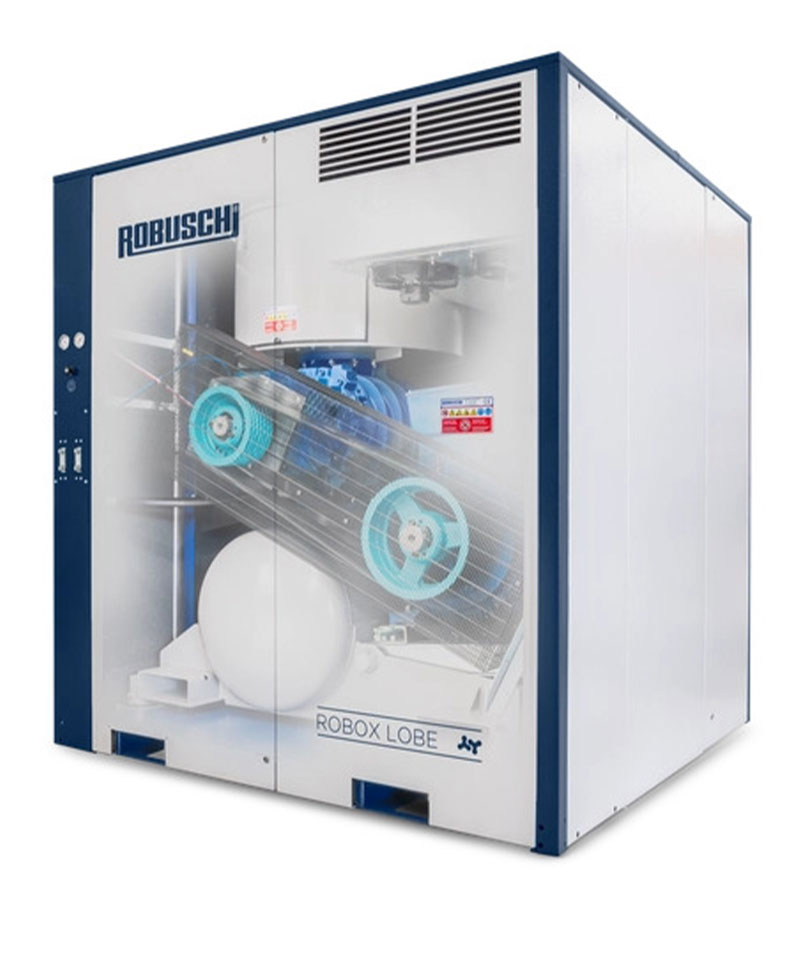

Integrated Enclosure Platform
Robox frames 3.0, 3.5, 4.0 and 5.0 use a common engineered enclosure platform. Depending on the selected configuration, the enclosure can accommodate either a lobe airend or a Robox screw airend.
Consequently, facilities can use a consistent package concept across different airflow technologies. Moreover, this approach can simplify plant layouts, maintenance access and future equipment upgrades.
Robox Lobe Frame 2.0
The Robox Lobe 2.0 uses a purpose-designed acoustic enclosure with optimised fresh-air conveyance.
The improved airflow provides a stable supply of process air to the airend. As a result, it supports dependable performance and internal cooling.
Selected Frame 2.0 arrangements can also provide higher airflow from a reduced footprint. However, engineers should confirm performance against the exact airend, motor and operating pressure.
Oil-Free RBS Tri-Lobe Airend
The RBS airend uses three specially profiled lobes and a low-pulse system. Consequently, it limits residual pressure pulsation and provides smoother airflow.
Moreover, the compression chamber remains free from lubricating oil. Robuschi certifies the RBS airend as Class 0 according to ISO 8573-1.
Therefore, the Robox Lobe Blower Unit suits applications where clean process air and contamination control are important.
Low Noise and Reduced Pulsation
Robuschi combines the tri-lobe airend with engineered suction and discharge silencers.
The suction silencer uses absorptive and reactive sound-control principles. Meanwhile, the acoustic enclosure incorporates soundproofing material, thicker panels and lined air passages.
As a result, the package helps reduce mechanical noise and airflow pulsation without requiring a large external acoustic enclosure.
Easy Service and Maintenance
The Robox package provides convenient access to major service components.
On smaller frames, technicians can perform oil changes, belt replacement and filter maintenance through the front panel and enclosure roof. Larger frames also provide removable side panels.
In addition, technicians can access the airend and reposition the motor without dismantling the complete package. Therefore, routine maintenance can require less downtime.
Durable Package Construction
The powder-coated enclosure helps protect internal components from corrosion, chemicals and environmental exposure.
Independent doors and panels allow straightforward inspection. Meanwhile, the rigid base supports secure installation and effective sound reduction.
The Robuschi VRC check valve also helps prevent reverse airflow, while its accessible position simplifies inspection and replacement.
Robox Connect 2.0 Controls
The optional Robox Connect 2.0 touchscreen supports real-time monitoring and control.
Available functions may include:
- Pressure and temperature monitoring
- Maintenance interval management
- Warning and alarm detection
- Operating-data trends
- Troubleshooting data logging
- Multiple language selection
- Modbus RTU and TCP communication
- Remote monitoring capability
Consequently, operators can identify abnormal conditions earlier and improve maintenance planning.
Variable-Speed Plug-and-Play Package
A plug-and-play version can include a premium frequency converter, programmed electrical control panel and IP54 electrical cabinet.
Therefore, operators can adjust blower speed according to process demand. This approach can improve airflow control and reduce unnecessary energy consumption during lower-demand periods.
Communication options may include Modbus, Profibus-Profinet and CANopen, depending on the selected configuration.
Robox Lobe Blower Applications in India
The Robox Lobe Blower Unit may support applications across India such as:
- Municipal wastewater aeration
- Industrial wastewater treatment
- Filter backwashing
- Pneumatic conveying
- Aquaculture aeration
- Food and beverage processing
- Chemical and pharmaceutical plants
- Cement and lime production
- General manufacturing
- Pulp and paper processing
- Mining applications
- Power-generation processes
- Vacuum and gas-transfer duties
However, engineers should match the airend, motor and accessories to the required airflow, pressure, vacuum and gas composition.
Selecting the Correct Robox Lobe Blower Unit
Correct selection depends on required capacity, discharge pressure or inlet vacuum, ambient conditions and operating duty.
In addition, engineers should confirm process-air temperature, altitude, electrical supply, noise limits, control requirements and available installation space.
Therefore, the Robox Lobe Blower Unit should be selected from model-specific performance data. Otherwise, an unsuitable configuration may overheat, consume excessive power or fail to provide the required airflow.
Product Enquiries in India
The Robox Lobe Blower Unit is presented through Pumps Bharat for wastewater treatment, pneumatic conveying, aquaculture, chemical processing, manufacturing, vacuum duties and other industrial air-handling applications across India.
When submitting an enquiry, please provide the required airflow, pressure or vacuum level, operating hours, ambient temperature, electrical supply and application details. Consequently, the available Robox Lobe configurations can be evaluated against the application requirements.
