DB Series
DB Series - Image 2

DB Series

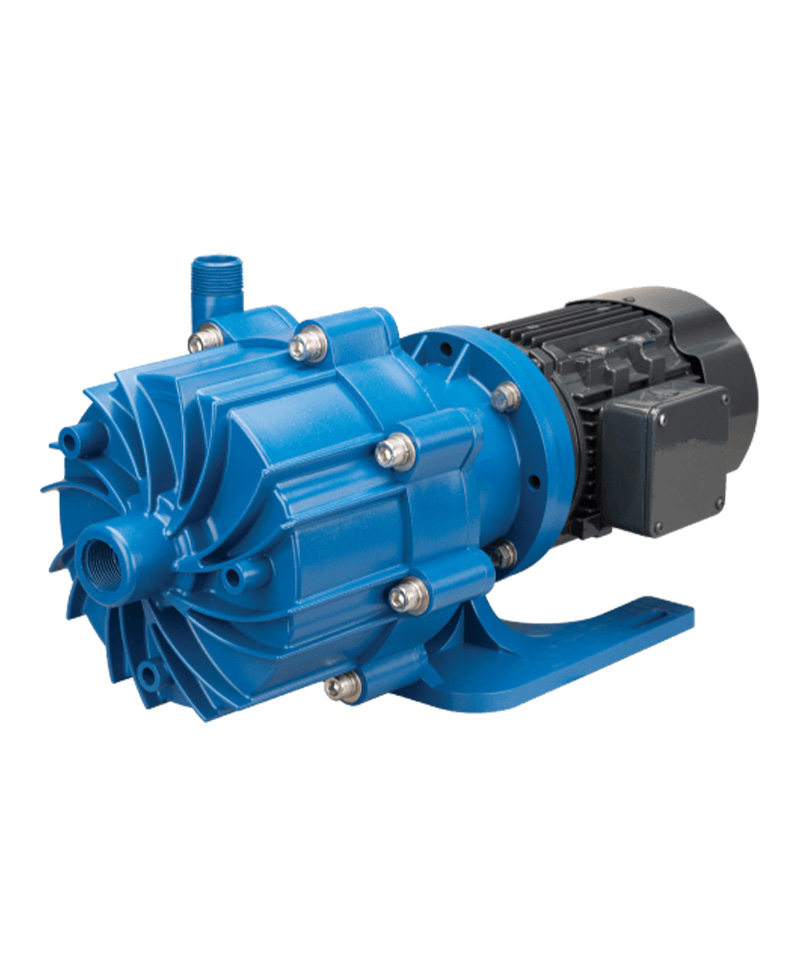

The FTI – DB Series Centrifugal Plastic Pumps offer durable, corrosion-resistant construction. Available in vertical and horizontal configurations, they deliver reliable performance for various industrial applications, including chemical transfer and water treatment, ensuring efficiency in demanding environments.

Resource

Downloads

Tags, ,
Categories

Product Description

The FTI – DB Series represents a robust line of centrifugal plastic pumps designed to meet the stringent demands of various industrial applications. Constructed from rugged, corrosion-resistant materials, these pumps utilize heavy gauge stainless steel and specialized plastics engineered for maximum durability. This design ensures reliable performance in environments where chemical resistance is paramount.

  • Close-coupled design
  • Polypropylene or PVDF construction
  • Neodymium magnets on every model
  • Replaceable shaft and bushing
  • Pump outer drive shall conform to ISO 1940 G2.5 balancing
  • Mounts to NEMA and IEC motor frames
  • Easy Set measurement-free outer drive
  • Mounts to motor without disassembly
  • Back pullout design
  • Five-year warranty
  • CE /UKCA/EAC certified
  • ATEX available

Flooded Suction Pumps

The Standard for Hydraulic Efficiency and Corrosive Fluid Handling

  • Sealless mag-drive design
  • Engineered for performance and proven in the field
  • Runs dry for hours without damage when equipped with a carbon bushing
  • Best efficiency of any pump in its class
  • Polypropylene or PVDF corrosion resistant construction
  • No seal replacement and no leaks
  • Horizontal or vertical installation (with IEC motor only)
  • High specific gravity handling – over 1.8s
  • Up to 70% operating efficiency
  • High working pressure up to 90 psi (6.2 bar)
  • Maximum viscosity: over 150 cP
  • Maximum temperature: – Polypropylene: 180°F (82°C) PVDF: 220°F (104°C)
  • Flow range: models from <1 to 221 gpm (1 to 837 lpm)
  • Maximum head: models from 20 to 201 feet (6.1 to 61.3 meters)
